One-lane count-to-pack
A feeder singulates one component type, a detector totals the batch and a gate discharges it into a bag, pouch, carton or tote.

Define component separation, detection, accepted count, verification, batch discharge and fault recovery before connecting a counter to a bagger, carton or kit station.
Parts counting accuracy is determined by the complete process: components must be separated so each item crosses the detector once, the sensing technology must identify every approved part, the controls must retain or reset the count correctly through stops, and the completed batch must discharge without leaving or adding a component. Secondary checks such as checkweighing or vision may be appropriate where an incorrect kit or pack has a high consequence.

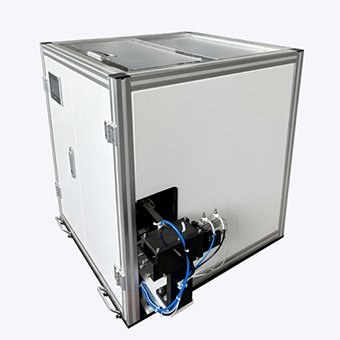

Counting begins upstream of the detector. Nested washers, overlapping clips, transparent mouldings or screws travelling side by side can produce an ambiguous signal even when the sensor is functioning correctly. The feeder and singulator should create a repeatable gap and path, while reject or recirculation logic removes conditions that cannot be counted reliably.
The detector should be selected from the component and environment. Photoelectric sensors can suit many opaque parts; fibre optics or lasers can address small features; inductive devices detect suitable metals; vision can classify shape or identify doubles. The background, mounting, vibration, dust and ambient light also affect performance. A sensor trial should use production colours, finishes and dimensional extremes.
After the target count is reached, the completed quantity must transfer into the receiving pack. Gates, funnels and chutes should prevent bounce-out and retain the first part of the next batch. The PLC needs a defined strategy for power loss, emergency stop, pack-not-ready, blocked discharge and manual removal so the displayed count always has a clear operational meaning.

Choose the arrangement from component behaviour, required batch rate, accuracy consequence and receiving process.
A feeder singulates one component type, a detector totals the batch and a gate discharges it into a bag, pouch, carton or tote.
Separate feeders count different parts into a common kit under one recipe, with completion status and optional independent verification.
Optical count is supported by checkweighing, vision or sample audit where an over-count or under-count has a higher cost or quality consequence.
“Accurate counting” should be translated into component conditions, permitted error, validation method and fault response.
Specify whether damaged, doubled, nested or foreign parts should be counted, rejected or stop the process. The detector needs a clear acceptance rule.
Establish the minimum gap and path stability required for one distinct signal per part across normal feeder output and component tolerances.
An inexpensive spare-part pack may accept a different verification level from a medical kit, service assembly or high-value production batch.
Confirm that the receiving bag or carton is present and that the completed batch has cleared before the next count is released.
Define whether the count is retained, diverted or restarted after emergency stop, power loss, operator access or packaging-machine fault.
Determine whether recipe, target, actual total, rejects, operator, time and verification result need to be stored or transferred to another system.
Representative components and receiving packs are as important as the target quantity.
| Component family | Samples, size, mass, material, colour, transparency, finish, nesting and accepted dimensional variation. |
|---|---|
| Batch recipes | Target count for each format, permitted tolerance, recipe frequency and mixed-component kit requirements. |
| Production demand | Batches per minute or hour, operating pattern, peak demand and available buffer between feeder and packer. |
| Detection challenge | Minimum part gap, overlap risk, sensor access, contamination, background and environmental light. |
| Receiving container | Opening size, depth, material, static, bounce risk, bag/carton-ready signal and changeover range. |
| Accuracy and verification | Maximum acceptable error, independent checking method, audit frequency and reject disposition. |
| Control recovery | Power failure, emergency stop, blocked chute, pack-not-ready, manual sample and count-reset authority. |
| Data interface | Batch total, recipe, alarms, reject count, production record, line communication and user access. |
Validation should include normal and worst-case component variants, low and high feeder levels, deliberately close spacing, repeated batch discharge, packaging stops and power or emergency-stop recovery where safe. Independently verify a statistically meaningful number of completed batches using the agreed method and investigate every discrepancy rather than reporting only the average count.
Weighing can be useful for verification or approximate quantities, but part-weight variation affects certainty. Optical counting gives an individual event for each separated part. Some systems combine both methods.
Potentially, using sensing or vision selected for the material and background. Transparent or reflective components should be physically trialled because standard photoelectric sensors may not provide a stable signal.
Control component spacing, use a sensing window matched to the part, stabilise the path and reject overlapping or nested conditions. Software filtering alone should not replace reliable singulation.
Yes. The counter can exchange ready, discharge and fault signals with a bagging machine, provided the chute and timing retain the next batch and prevent bounce-out.
Agree the number of batches, independent verification method, component conditions, operating rate, fault tests and permitted result before FAT. The acceptance should cover the complete count-to-container process.
