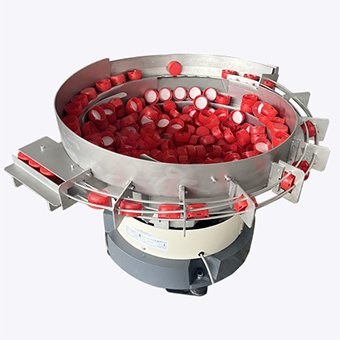

Vibratory bowl feeder
Best considered for repeatable closure families where tooling can identify and reject incorrect poses. It can manage complex features but is normally configured around a defined format or compatible family.

Compare cap bowl feeders, centrifugal sorters and vision-guided systems using the closure, required rate, changeover family and final capping-machine hand-off.
Choose a cap feeder from the actual closure and capping-line duty, not from diameter alone. Vibratory bowl feeders are often suitable for dedicated formats with clear mechanical orientation features. Centrifugal sorters can suit robust closures that need a smooth, higher-flow supply. Flexible or vision-guided systems can be valuable for broader format changeover or difficult cosmetic parts. The final decision must also account for chute behaviour, queue pressure, capper demand, bulk replenishment and trial evidence.
The same nominal cap size can behave differently because of skirt depth, tamper band, liner, hinge, dispensing spout, top decoration or mould variation. Gather production samples from every approved supplier and mould source before selecting a mechanism. The feeder must accept the full approved tolerance range while rejecting or recirculating parts outside the required pose.
Next define how the capping machine receives the closure. A gravity chute needs a stable queue and controlled back pressure; a pick-and-place head needs one cap in a repeatable nest; a rotary capper may require a timing relationship with pockets or a placement turret. The feeder, chute and capping interface should be treated as one system because an excellent sorter can still cause downtime if the final queue wedges or the capper demand logic is poorly coordinated.
Finally compare changeover and part-care requirements. A highly dedicated bowl can be efficient for one closure running continuously, while several low-volume formats may justify flexible presentation or modular change parts. Trial all formats at realistic bulk levels and through downstream stops before confirming the concept.

Each method has a different balance of dedicated tooling, output potential, part care and format flexibility.
Best considered for repeatable closure families where tooling can identify and reject incorrect poses. It can manage complex features but is normally configured around a defined format or compatible family.
Useful for suitable robust closures where smooth rotary flow and a high accepted output are important. Cap geometry must work with the disc, guide and reject method.
Useful when formats change, cosmetic contact must be controlled or conventional mechanical tooling is difficult. Camera, robot and presentation-surface capacity set the effective output.
A useful comparison considers the complete operating duty rather than one headline speed or machine price.
Place a representative quantity on a flat surface and observe stable poses, nesting, rolling and overlap. Clear geometric differences between correct and incorrect poses support mechanical sorting.
Use the capper’s real demand, number of heads, buffer requirement and peak cycle. Allow for recirculation, stops and changeover rather than relying on theoretical feeder movement.
Decorated surfaces, soft liners, tamper features and soft materials may need reduced bulk depth, low-friction contact and fewer recirculation cycles.
List current and credible future caps. Compare change-part cost, setup verification and lost production against the flexibility of camera and robot recipes.
Chute, air track, escapement, pick nest, pocket or direct placement each creates different requirements for queue pressure, cap orientation and machine signals.
The concept should recirculate or reject misoriented parts without creating secondary jams, and should recover predictably after a downstream stop.
Use this table as a starting point; sample trials remain necessary because closure geometry can overturn general assumptions.
| Vibratory bowl feeder | Strong dedicated orientation, compact final track and proven queue presentation; normally more format-specific and sensitive to tooling changes. |
|---|---|
| Centrifugal sorter | Smooth rotary movement and strong flow for suitable caps; requires compatible geometry and can be less forgiving of highly asymmetric closures. |
| Flexible feeder | Programmable recipes and gentler presentation for a family of parts; effective output depends on visible pick poses, surface occupancy and robot cycle. |
| Vision conveyor | Useful for spread parts and programmable classification; needs controlled overlap and adequate conveyor area for accessible caps. |
| Bulk elevator | Maintains a consistent sorter level and reduces manual loading; it does not perform final orientation by itself. |
| Cap chute and escapement | Maintains accepted orientation and controls release to the capper; poor queue design can limit the complete system regardless of sorter capacity. |
| Inspection option | Can verify colour, top feature, liner, tamper band or pose where the presentation is stable enough for the required check. |
| Trial evidence | Should include all formats, least favourable tolerances, realistic bulk depth, recirculation and capper stop/start behaviour. |
Ask each concept to demonstrate the complete path from bulk loading to the final capper interface. Record accepted caps at the hand-off, not movement inside the sorter. Include misorientation, jam frequency, marking, changeover, operator intervention and recovery after a full chute so the comparison reflects production rather than a short visual demonstration.
No. Centrifugal systems can provide high flow for suitable closures, but accepted output depends on cap geometry, recirculation and the final chute. A bowl may outperform it for a complex cap that can be tooled reliably.
They can suit some applications, particularly with several robots or presentation surfaces, but the complete pick cycle and available accepted poses must be modelled. Dedicated mechanical sorters may be more efficient for one stable high-volume cap.
Potentially. Vision or another inspection method can be added where the liner is visible and the cap presentation, lighting and contrast support a reliable check.
Enough to create realistic bulk behaviour and include every approved format and tolerance condition. A handful of selected caps is not representative of recirculation, tangling or mould variation.
They can be separate, but the interface must be coordinated. Chute geometry, demand signals, queue capacity, placement method and acceptance testing should be agreed between the feeder and capper parties.
Send a part photo or drawing, the target rate and the required orientation. We will recommend the most suitable starting point.
